vuex实现历史记录的示例代码

2022-04-15 0 1,079

最近自研着一个可视化操作平台,其中涉及到用户操作后可撤销或重做,在网上搜了一些解决思路,完善自己所设想的解决思路。

历史记录需求的要点

  • 可存储在 localStorage 中
  • 可多次撤销或多次重做
  • 点击列表中的一项,将历史倒退或前进至指定位置

看似简单的需求,在基础建设设计上的错误,亦会在未来导致更多的工作量。所以结合上面两点的要求,发现 vuex 的基本思路非常适合完成这个需求,redux 同样。

实现思路

此项目用了 typescript 来加强代码的严谨性,方便日后维护,大家简单看个思路。

1. 先定义历史记录的数据结构

interface HistoryItem {
  timestrap: number; // 记录时间戳
  name: string; // 记录名称
  redo: string; // 重做Mutation
  undo: string; // 撤销Mutation
  redoParams: any[]; // 重做Mutation提交参数
  undoParams: any[]; // 撤销Mutation提交参数
}

interface HistoryStatus {
  historys: HistoryItem[]; // 记录history数组
  _currentHistory: number; // 当前节点索引
}

2. 编写 History 状态模块

编写基础操作history状态的vuex module,创建记录的Mutation,重做和撤销的Action
一条记录是包含对这个步骤的执行redo操作与撤销undo操作的。所以在用户点击列表其中一项时,应该是循环回退到当前项的前一项undo,或循环redo到当前项

所以需要增加一条空记录,方便用户点击空记录撤销最初的操作。

vuex实现历史记录的示例代码

运用了vuex-module-decorators 装饰器,写更易维护的代码

import { VuexModule, Module, Mutation, Action } from "vuex-module-decorators";

@Module({ namespaced: true })
export class HistoryModule extends VuexModule<HistoryStatus> implements HistoryStatus {
  /**
   * 初始化一个空记录的原因主要是方便列表操作时:
   * 当用户点击最早的一条记录时,可以正常撤销用户操作的第一步
  **/
  public historys: HistoryItem[] = [
    {
      name: `打开`,
      timestrap: Date.now(),
      redo: "",
      redoParams: [],
      undo: "",
      undoParams: [],
    },
  ];
  public _currentHistory: number = 0;

  // getter
  get current(){
    return this._currentHistory;
  }

  // getter
  get historyList(): HistoryItem[] {
    return this.historys || [];
  }

  // 创建历史记录
  @Mutation
  public CREATE_HISTORY(payload: HistoryItem) {
    if (this._currentHistory < this.historys.length - 1) {
      this.historys = this.historys.slice(0, this._currentHistory);
    }
    // 由于js的深浅拷贝问题,所以在创建时都需要对数据进行深拷贝
    // 想尝试lodash的clone函数,但发现好像JSON.stringify的方式clone应该更快的,毕竟我们的数据不存在函数
    // 我这里就先不改了,主要是表达出思路即可
    this.historys.push(_.cloneDeep(payload));
    this._currentHistory = this.historys.length - 1;
  }

  @Mutation
  public SET_CURRENT_HISTORY(index: number) {
    this._currentHistory = index < 0 ? 0 : index;
  }

  // 重做
  @Action
  public RedoHistory(times: number = 1) {
    let { state, commit } = this.context;
    let historys: HistoryItem[] = state.historys;
    let current: number = state._currentHistory;
    if (current + times >= historys.length) return;
    while (times > 0) {
      current++;
      let history = historys[current];
      if (history) {
        commit(history.redo, ...history.redoParams, { root: true });
      }
      times--;
    }
    commit("SET_CURRENT_HISTORY", current);
  }

  // 撤销
  @Action
  public UndoHistory(times: number = 1) {
    let { state, commit } = this.context;
    let historys: HistoryItem[] = state.historys;
    let current: number = state._currentHistory;
    if (current - times < 0) return;
    while (times > 0) {
      let history = historys[current];
      if (history) {
        commit(history.undo, ...history.undoParams, { root: true });
      }
      times--;
      current--;
    }
    commit("SET_CURRENT_HISTORY", current);
  }
}

3. 编写可以撤销或重做的功能

完成上面两步后,我们就可以编写各种操作了

编写对数据基础操作的Mutation

@Mutation
public CREATE_PAGE(payload: { page: PageItem; index: number }) {
  this.pages.splice(payload.index, 0, _.cloneDeep(payload.page));
  this._currentPage = this.pages.length - 1;
}

@Mutation
public REMOVE_PAGE(id: string) {
  let index = this.pages.findIndex((p) => p.id == id);
  index > -1 && this.pages.splice(index, 1);
  if (this._currentPage == index) {
    this._currentPage = this.pages.length > 0 ? 0 : -1;
  }
}

将基础操作按要求封装成带保存->记录->执行的Action

// 包装创建页面函数
@Action
public CreatePage(type: "page" | "dialog") {
  let { state, commit } = this.context;

  // 记录保存即将创建的页面
  let id = _.uniqueId(type) + Date.now();
  let pageName = pageType[type];
  let page: PageItem = {
    id,
    name: `${pageName}${state.pages.length + 1}`,
    type,
    layers: [],
    style: { width: 720, height: 1280 },
  };

  //创建历史记录
  let history: HistoryItem = {
    name: `创建${pageName}`,
    timestrap: Date.now(),
    redo: "Page/CREATE_PAGE",
    redoParams: [{ index: state.pages.length - 1, page }],
    undo: "Page/REMOVE_PAGE",
    undoParams: [id],
  };
  // 保存记录此历史记录
  commit("Histroy/CREATE_HISTORY", history, { root: true });

  commit(history.redo, ...history.redoParams, { root: true });
}

@Action
public RemovePage(id: string) {
  // 记录保存现场状态
  let index = this.pages.findIndex((p) => p.id == id);
  if (index < 0) return;
  let page: PageItem = this.context.state.pages[index];

  //创建历史记录
  let history: HistoryItem = {
    name: `删除 ${page.name}`,
    timestrap: Date.now(),
    redo: "Page/REMOVE_PAGE",
    redoParams: [id],
    undo: "Page/CREATE_PAGE",
    undoParams: [{ page, index }],
  };

  // 保存记录此历史记录
  this.context.commit("Histroy/CREATE_HISTORY", history, { root: true });
  this.context.commit(history.redo, ...history.redoParams, { root: true });
}

以上,撤销与重做的功能就基本完成了

4. 使用

1. 我们现在只需要在使用时创建或删除页面时使用封装的`Action`后

  private create(type: "page" | "dialog") {
    this.$store.dispatch("Page/CreatePage", type);
  }

  private remove(id: number) {
    this.$store.dispatch("Page/RemovePage", id);
  }

2. 配置全局热键

typescript App.vue

private mounted() {
    let self = this;
    hotkeys("ctrl+z", function (event, handler) {
      self.$store.dispatch("History/UndoHistory");
    });
    hotkeys("ctrl+y", function (event, handler) {
      self.$store.dispatch("History/RedoHistory");
    });
  }

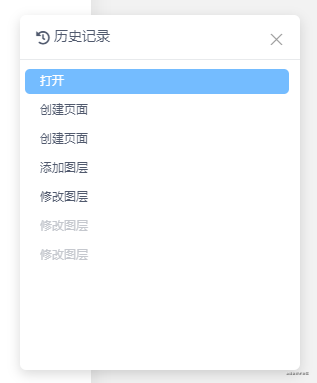

效果

vuex实现历史记录的示例代码

到此这篇关于vuex实现历史记录的示例代码的文章就介绍到这了,更多相关vuex 历史记录内容请搜索NICE源码以前的文章或继续浏览下面的相关文章希望大家以后多多支持NICE源码!
