Vue 3.0自定义指令的使用入门

2022-04-15 0 938
目录
  • 一、自定义指令
    • 1、注册全局自定义指令
    • 2、使用全局自定义指令
    • 3、完整的使用示例
  • 二、注册全局自定义指令的过程
    • 三、应用挂载的过程
      • 四、阿宝哥有话说
        • 4.1 Vue 3 有哪些内置指令?
        • 4.2 指令有几种类型?
        • 4.3 注册全局指令与局部指令有什么区别?
        • 4.4 内置指令和自定义指令生成的渲染函数有什么区别?
        • 4.5 如何在渲染函数中应用指令?

      提示:在阅读本文前,建议您先阅读 Vue 3 官方文档 自定义指令 章节的内容。

      一、自定义指令

      1、注册全局自定义指令

      const app = Vue.createApp({})

      // 注册一个全局自定义指令 v-focus
      app.directive('focus', {
        // 当被绑定的元素挂载到 DOM 中时被调用
        mounted(el) {
          // 聚焦元素
          el.focus()
        }
      })

      2、使用全局自定义指令

      <div id="app">
         <input v-focus />
      </div>

      3、完整的使用示例

      <div id="app">
         <input v-focus />
      </div>
      <script>
         const { createApp } = Vue

         const app = Vue.createApp({}) // ①
         app.directive('focus', { // ②
           // 当被绑定的元素挂载到 DOM 中时被调用
           mounted(el) {
             el.focus() // 聚焦元素
           }
         })
         app.mount('#app') // ③
      </script>

      当页面加载完成后,页面中的输入框元素将自动获得焦点。该示例的代码比较简单,主要包含 3 个步骤:创建 App 对象、注册全局自定义指令和应用挂载。其中创建 App 对象的细节,阿宝哥会在后续的文章中单独介绍,下面我们将重点分析其他 2 个步骤。首先我们先来分析注册全局自定义指令的过程。

      二、注册全局自定义指令的过程

      在以上示例中,我们使用 app 对象的 directive 方法来注册全局自定义指令:

      app.directive('focus', {
        // 当被绑定的元素挂载到 DOM 中时被调用
        mounted(el) {
          el.focus() // 聚焦元素
        }
      })

      当然,除了注册全局自定义指令外,我们也可以注册局部指令,因为组件中也接受一个 directives 的选项:

      directives: {
        focus: {
          mounted(el) {
            el.focus()
          }
        }
      }

      对于以上示例来说,我们使用的 app.directive 方法被定义在 runtime-core/src/apiCreateApp.ts 文件中:

      // packages/runtime-core/src/apiCreateApp.ts
      export function createAppAPI<HostElement>(
        render: RootRenderFunction,
        hydrate?: RootHydrateFunction
      ): CreateAppFunction<HostElement> {
        return function createApp(rootComponent, rootProps = null) {
          const context = createAppContext()
          let isMounted = false

          const app: App = (context.app = {
            // 省略部分代码
            _context: context,

            // 用于注册或检索全局指令。
            directive(name: string, directive?: Directive) {
              if (__DEV__) {
                validateDirectiveName(name)
              }
              if (!directive) {
                return context.directives[name] as any
              }
              if (__DEV__ && context.directives[name]) {
                warn(`Directive "${name}" has already been registered in target app.`)
              }
              context.directives[name] = directive
              return app
            },

          return app
        }
      }

      通过观察以上代码,我们可以知道 directive 方法支持以下两个参数:

      • name:表示指令的名称;
      • directive(可选):表示指令的定义。

      name 参数比较简单,所以我们重点分析 directive 参数,该参数的类型是 Directive 类型:

      // packages/runtime-core/src/directives.ts
      export type Directive<T = any, V = any> =
        | ObjectDirective<T, V>
        | FunctionDirective<T, V>

      由上可知 Directive 类型属于联合类型,所以我们需要继续分析 ObjectDirective 和 FunctionDirective 类型。这里我们先来看一下 ObjectDirective 类型的定义:

      // packages/runtime-core/src/directives.ts
      export interface ObjectDirective<T = any, V = any> {
        created?: DirectiveHook<T, null, V>
        beforeMount?: DirectiveHook<T, null, V>
        mounted?: DirectiveHook<T, null, V>
        beforeUpdate?: DirectiveHook<T, VNode<any, T>, V>
        updated?: DirectiveHook<T, VNode<any, T>, V>
        beforeUnmount?: DirectiveHook<T, null, V>
        unmounted?: DirectiveHook<T, null, V>
        getSSRProps?: SSRDirectiveHook
      }

      该类型定义了对象类型的指令,对象上的每个属性表示指令生命周期上的钩子。而 FunctionDirective 类型则表示函数类型的指令:

      // packages/runtime-core/src/directives.ts
      export type FunctionDirective<T = any, V = any> = DirectiveHook<T, any, V>

      export type DirectiveHook<T = any, Prev = VNode<any, T> | null, V = any> = (
        el: T,
        binding: DirectiveBinding<V>,
        vnode: VNode<any, T>,
        prevVNode: Prev
      ) => void

      介绍完 Directive 类型,我们再回顾一下前面的示例,相信你就会清晰很多:

      app.directive('focus', {
        // 当被绑定的元素挂载到 DOM 中时触发
        mounted(el) {
          el.focus() // 聚焦元素
        }
      })

      对于以上示例,当我们调用 app.directive 方法注册自定义 focus 指令时,就会执行以下逻辑:

      directive(name: string, directive?: Directive) {
        if (__DEV__) { // 避免自定义指令名称,与已有的内置指令名称冲突
          validateDirectiveName(name)
        }
        if (!directive) { // 获取name对应的指令对象
          return context.directives[name] as any
        }
        if (__DEV__ && context.directives[name]) {
          warn(`Directive "${name}" has already been registered in target app.`)
        }
        context.directives[name] = directive // 注册全局指令
        return app
      }

      当 focus 指令注册成功之后,该指令会被保存在 context 对象的 directives 属性中,具体如下图所示:

      Vue 3.0自定义指令的使用入门

      顾名思义 context 是表示应用的上下文对象,那么该对象是如何创建的呢?其实,该对象是通过 createAppContext 函数来创建的:

      const context = createAppContext()

      而 createAppContext 函数被定义在 runtime-core/src/apiCreateApp.ts 文件中:

      // packages/runtime-core/src/apiCreateApp.ts
      export function createAppContext(): AppContext {
        return {
          app: null as any,
          config: {
            isNativeTag: NO,
            performance: false,
            globalProperties: {},
            optionMergeStrategies: {},
            isCustomElement: NO,
            errorHandler: undefined,
            warnHandler: undefined
          },
          mixins: [],
          components: {},
          directives: {},
          provides: Object.create(null)
        }
      }

      看到这里,是不是觉得注册全局自定义指令的内部处理逻辑其实挺简单的。那么对于已注册的 focus 指令,何时会被调用呢?要回答这个问题,我们就需要分析另一个步骤 —— 应用挂载。

      三、应用挂载的过程

      为了更加直观地了解应用挂载的过程,阿宝哥利用 Chrome 开发者工具,记录了应用挂载的主要过程:

      Vue 3.0自定义指令的使用入门

      通过上图,我们就可以知道应用挂载期间所经历的主要过程。此外,从图中我们也发现了一个与指令相关的函数 resolveDirective。很明显,该函数用于解析指令,且该函数在 render 方法中会被调用。在源码中,我们找到了该函数的定义:

      // packages/runtime-core/src/helpers/resolveAssets.ts
      export function resolveDirective(name: string): Directive | undefined {
        return resolveAsset(DIRECTIVES, name)
      }

      在 resolveDirective 函数内部,会继续调用 resolveAsset 函数来执行具体的解析操作。在分析 resolveAsset 函数的具体实现之前,我们在 resolveDirective 函数内部加个断点,来一睹 render 方法的 “芳容”:

      Vue 3.0自定义指令的使用入门

      在上图中,我们看到了与 focus 指令相关的 _resolveDirective(“focus”) 函数调用。前面我们已经知道在 resolveDirective 函数内部会继续调用 resolveAsset 函数,该函数的具体实现如下:

      // packages/runtime-core/src/helpers/resolveAssets.ts
      function resolveAsset(
        type: typeof COMPONENTS | typeof DIRECTIVES,
        name: string,
        warnMissing = true
      ) {
        const instance = currentRenderingInstance || currentInstance
        if (instance) {
          const Component = instance.type
          // 省略解析组件的处理逻辑
          const res =
            // 局部注册
            resolve(instance[type] || (Component as ComponentOptions)[type], name) ||
            // 全局注册
            resolve(instance.appContext[type], name)
          return res
        } else if (__DEV__) {
          warn(
            `resolve${capitalize(type.slice(0, -1))} ` +
              `can only be used in render() or setup().`
          )
        }
      }

      因为注册 focus 指令时,使用的是全局注册的方式,所以解析的过程会执行 resolve(instance.appContext[type], name) 该语句,其中 resolve 方法的定义如下:

      function resolve(registry: Record<string, any> | undefined, name: string) {
        return (
          registry &&
          (registry[name] ||
            registry[camelize(name)] ||
            registry[capitalize(camelize(name))])
        )
      }

      分析完以上的处理流程,我们可以知道在解析全局注册的指令时,会通过 resolve 函数从应用的上下文对象中获取已注册的指令对象。在获取到 _directive_focus 指令对象后,render 方法内部会继续调用 _withDirectives 函数,用于把指令添加到 VNode 对象上,该函数被定义在 runtime-core/src/directives.ts 文件中:

      // packages/runtime-core/src/directives.ts
      export function withDirectives<T extends VNode>(
        vnode: T,
        directives: DirectiveArguments
      ): T {
        const internalInstance = currentRenderingInstance // 获取当前渲染的实例
        const instance = internalInstance.proxy
        const bindings: DirectiveBinding[] = vnode.dirs || (vnode.dirs = [])
        for (let i = 0; i < directives.length; i++) {
          let [dir, value, arg, modifiers = EMPTY_OBJ] = directives[i]
          // 在 mounted 和 updated 时,触发相同行为,而不关系其他的钩子函数
          if (isFunction(dir)) { // 处理函数类型指令
            dir = {
              mounted: dir,
              updated: dir
            } as ObjectDirective
          }
          bindings.push({
            dir,
            instance,
            value,
            oldValue: void 0,
            arg,
            modifiers
          })
        }
        return vnode
      }

      因为一个节点上可能会应用多个指令,所以 withDirectives 函数在 VNode 对象上定义了一个 dirs 属性且该属性值为数组。对于前面的示例来说,在调用 withDirectives 函数之后,VNode 对象上就会新增一个 dirs 属性,具体如下图所示:

      Vue 3.0自定义指令的使用入门

      通过上面的分析,我们已经知道在组件的 render 方法中,我们会通过  withDirectives 函数把指令注册对应的 VNode 对象上。那么 focus 指令上定义的钩子什么时候会被调用呢?在继续分析之前,我们先来介绍一下指令对象所支持的钩子函数。

      一个指令定义对象可以提供如下几个钩子函数 (均为可选):

      • created:在绑定元素的属性或事件监听器被应用之前调用。
      • beforeMount:当指令第一次绑定到元素并且在挂载父组件之前调用。
      • mounted:在绑定元素的父组件被挂载后调用。
      • beforeUpdate:在更新包含组件的 VNode 之前调用。
      • updated:在包含组件的 VNode 及其子组件的 VNode 更新后调用。
      • beforeUnmount:在卸载绑定元素的父组件之前调用。
      • unmounted:当指令与元素解除绑定且父组件已卸载时,只调用一次。

      介绍完这些钩子函数之后,我们再来回顾一下前面介绍的 ObjectDirective 类型:

      // packages/runtime-core/src/directives.ts
      export interface ObjectDirective<T = any, V = any> {
        created?: DirectiveHook<T, null, V>
        beforeMount?: DirectiveHook<T, null, V>
        mounted?: DirectiveHook<T, null, V>
        beforeUpdate?: DirectiveHook<T, VNode<any, T>, V>
        updated?: DirectiveHook<T, VNode<any, T>, V>
        beforeUnmount?: DirectiveHook<T, null, V>
        unmounted?: DirectiveHook<T, null, V>
        getSSRProps?: SSRDirectiveHook

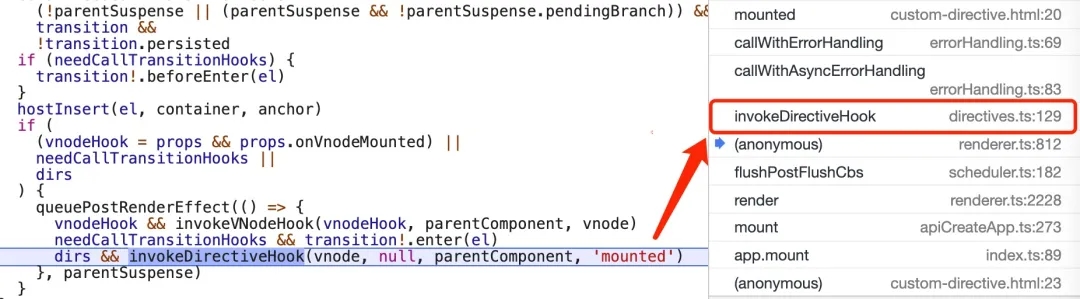

      好的,接下来我们来分析一下 focus 指令上定义的钩子什么时候被调用。同样,阿宝哥在 focus 指令的 mounted 方法中加个断点:

      Vue 3.0自定义指令的使用入门

      在图中右侧的调用栈中,我们看到了 invokeDirectiveHook 函数,很明显该函数的作用就是调用指令上已注册的钩子。出于篇幅考虑,具体的细节阿宝哥就不继续介绍了,感兴趣的小伙伴可以自行断点调试一下。

      四、阿宝哥有话说

      4.1 Vue 3 有哪些内置指令?

      在介绍注册全局自定义指令的过程中,我们看到了一个 validateDirectiveName 函数,该函数用于验证自定义指令的名称,从而避免自定义指令名称,与已有的内置指令名称冲突。

      // packages/runtime-core/src/directives.ts
      export function validateDirectiveName(name: string) {
        if (isBuiltInDirective(name)) {
          warn('Do not use built-in directive ids as custom directive id: ' + name)
        }
      }

      在 validateDirectiveName 函数内部,会通过 isBuiltInDirective(name) 语句来判断是否为内置指令:

      const isBuiltInDirective = /*#__PURE__*/ makeMap(
        'bind,cloak,else-if,else,for,html,if,model,on,once,pre,show,slot,text'
      )

      以上代码中的 makeMap 函数,用于生成一个 map 对象(Object.create(null))并返回一个函数,用于检测某个 key 是否存在 map 对象中。另外,通过以上代码,我们就可以很清楚地了解 Vue 3 中为我们提供了哪些内置指令。

      4.2 指令有几种类型?

      在 Vue 3 中指令分为 ObjectDirective 和 FunctionDirective 两种类型:

      // packages/runtime-core/src/directives.ts
      export type Directive<T = any, V = any> =
        | ObjectDirective<T, V>
        | FunctionDirective<T, V>

      ObjectDirective

      export interface ObjectDirective<T = any, V = any> {
        created?: DirectiveHook<T, null, V>
        beforeMount?: DirectiveHook<T, null, V>
        mounted?: DirectiveHook<T, null, V>
        beforeUpdate?: DirectiveHook<T, VNode<any, T>, V>
        updated?: DirectiveHook<T, VNode<any, T>, V>
        beforeUnmount?: DirectiveHook<T, null, V>
        unmounted?: DirectiveHook<T, null, V>
        getSSRProps?: SSRDirectiveHook
      }

      FunctionDirective

      export type FunctionDirective<T = any, V = any> = DirectiveHook<T, any, V>

      export type DirectiveHook<T = any, Prev = VNode<any, T> | null, V = any> = (
        el: T,
        binding: DirectiveBinding<V>,
        vnode: VNode<any, T>,
        prevVNode: Prev
      ) => void

      如果你想在 mounted 和 updated 时触发相同行为,而不关心其他的钩子函数。那么你可以通过将回调函数传递给指令来实现

      app.directive('pin', (el, binding) => {
        el.style.position = 'fixed'
        const s = binding.arg || 'top'
        el.style[s] = binding.value + 'px'
      })

      4.3 注册全局指令与局部指令有什么区别?

      注册全局指令

      app.directive('focus', {
        // 当被绑定的元素挂载到 DOM 中时被调用
        mounted(el) {
          el.focus() // 聚焦元素
        }
      });

      注册局部指令

      const Component = defineComponent({
        directives: {
          focus: {
            mounted(el) {
              el.focus()
            }
          }
        },
        render() {
          const { directives } = this.$options;
          return [withDirectives(h('input'), [[directives.focus, ]])]
        }
      });

      解析全局注册和局部注册的指令

      // packages/runtime-core/src/helpers/resolveAssets.ts
      function resolveAsset(
        type: typeof COMPONENTS | typeof DIRECTIVES,
        name: string,
        warnMissing = true
      ) {
        const instance = currentRenderingInstance || currentInstance
        if (instance) {
          const Component = instance.type
          // 省略解析组件的处理逻辑
          const res =
            // 局部注册
            resolve(instance[type] || (Component as ComponentOptions)[type], name) ||
            // 全局注册
            resolve(instance.appContext[type], name)
          return res
        }
      }

      4.4 内置指令和自定义指令生成的渲染函数有什么区别?

      要了解内置指令和自定义指令生成的渲染函数的区别,阿宝哥以 v-if 、v-show 内置指令和 v-focus 自定义指令为例,然后使用 Vue 3 Template Explorer 这个在线工具来编译生成渲染函数:

      v-if 内置指令

      <input v-if="isShow" />

      const _Vue = Vue
      return function render(_ctx, _cache, $props, $setup, $data, $options) {
        with (_ctx) {
          const { createVNode: _createVNode, openBlock: _openBlock,
            createBlock: _createBlock, createCommentVNode: _createCommentVNode } = _Vue

          return isShow
            ? (_openBlock(), _createBlock("input", { key: 0 }))
            : _createCommentVNode("v-if", true)
        }
      }

      对于 v-if 指令来说,在编译后会通过 ?: 三目运算符来实现动态创建节点的功能。

      v-show 内置指令

      <input v-show="isShow" />

      const _Vue = Vue
      return function render(_ctx, _cache, $props, $setup, $data, $options) {
        with (_ctx) {
          const { vShow: _vShow, createVNode: _createVNode, withDirectives: _withDirectives,
            openBlock: _openBlock, createBlock: _createBlock } = _Vue

          return _withDirectives((_openBlock(), _createBlock("input", null, null, 512 /* NEED_PATCH */)), [
            [_vShow, isShow]
          ])
        }
      }

      以上示例中的 vShow 指令被定义在 packages/runtime-dom/src/directives/vShow.ts 文件中,该指令属于 ObjectDirective 类型的指令,该指令内部定义了 beforeMount、mounted、updated 和 beforeUnmount 四个钩子。

      v-focus 自定义指令

      <input v-focus />

      const _Vue = Vue
      return function render(_ctx, _cache, $props, $setup, $data, $options) {
        with (_ctx) {
          const { resolveDirective: _resolveDirective, createVNode: _createVNode,
            withDirectives: _withDirectives, openBlock: _openBlock, createBlock: _createBlock } = _Vue

          const _directive_focus = _resolveDirective("focus")
          return _withDirectives((_openBlock(), _createBlock("input", null, null, 512 /* NEED_PATCH */)), [
            [_directive_focus]
          ])
        }
      }

      通过对比 v-focus 与 v-show 指令生成的渲染函数,我们可知 v-focus 自定义指令与 v-show 内置指令都会通过 withDirectives 函数,把指令注册到 VNode 对象上。而自定义指令相比内置指令来说,会多一个指令解析的过程。

      此外,如果在 input 元素上,同时应用了 v-show 和 v-focus 指令,则在调用 _withDirectives 函数时,将使用二维数组:

      <input v-show="isShow" v-focus />

      const _Vue = Vue
      return function render(_ctx, _cache, $props, $setup, $data, $options) {
        with (_ctx) {
          const { vShow: _vShow, resolveDirective: _resolveDirective, createVNode: _createVNode,
            withDirectives: _withDirectives, openBlock: _openBlock, createBlock: _createBlock } = _Vue

          const _directive_focus = _resolveDirective("focus")
          return _withDirectives((_openBlock(), _createBlock("input", null, null, 512 /* NEED_PATCH */)), [
            [_vShow, isShow],
            [_directive_focus]
          ])
        }
      }

      4.5 如何在渲染函数中应用指令?

      除了在模板中应用指令之外,利用前面介绍的 withDirectives 函数,我们可以很方便地在渲染函数中应用指定的指令:

      <div id="app"></div>
      <script>
         const { createApp, h, vShow, defineComponent, withDirectives } = Vue
         const Component = defineComponent({
           data() {
             return { value: true }
           },
           render() {
             return [withDirectives(h('div', '我是阿宝哥'), [[vShow, this.value]])]
           }
         });
         const app = Vue.createApp(Component)
         app.mount('#app')
      </script>

      本文阿宝哥主要介绍了在 Vue 3 中如何自定义指令、如何注册全局和局部指令。为了让大家能够更深入地掌握自定义指令的相关知识,阿宝哥从源码的角度分析了指令的注册和应用过程。

      在后续的文章中,阿宝哥将会介绍一些特殊的指令,当然也会重点分析一下双向绑定的原理,感兴趣的小伙伴不要错过哟。

      以上就是Vue 3.0自定义指令的使用入门的详细内容,更多关于Vue 3.0自定义指令的使用的资料请关注NICE源码其它相关文章!

      免责声明:
      1、本网站所有发布的源码、软件和资料均为收集各大资源网站整理而来;仅限用于学习和研究目的,您必须在下载后的24个小时之内,从您的电脑中彻底删除上述内容。 不得使用于非法商业用途,不得违反国家法律。否则后果自负!

      2、本站信息来自网络,版权争议与本站无关。一切关于该资源商业行为与www.niceym.com无关。
      如果您喜欢该程序,请支持正版源码、软件,购买注册,得到更好的正版服务。
      如有侵犯你版权的,请邮件与我们联系处理(邮箱:skknet@qq.com),本站将立即改正。

      NICE源码网 JavaScript Vue 3.0自定义指令的使用入门 https://www.niceym.com/27524.html
